If you are a smart home enthusiast, you know the struggle. You are sitting quietly on the couch, reading a book or soldering a PCB, and suddenly the room goes dark. You have to wave your arms like a stranded sailor just to get your motion sensor to acknowledge your existence.
This is the fundamental flaw of Passive Infrared (PIR) sensors. They detect significant motion, not presence.
The Aqara FP2 promises to fix this legacy problem by switching from simple infrared optics to advanced radar technology. As an embedded systems engineer, I wanted to understand exactly how it works. I dug into the [FCC filings (ID: 2AKIT-PS-S02)] and analyzed the hardware logic to see if this device is truly a generational leap or just marketing hype.
Here is an engineering analysis of the Aqara FP2, focusing on the shift to 60GHz mmWave radar and the challenges that come with it.
Why Aqara Chose Wi-Fi Over Zigbee
When the FP2 was first announced, the immediate reaction from the community was skepticism. “Why Wi-Fi?” users asked. “A sensor should use Zigbee or Thread to save power and keep my local network clean.”
From a user experience standpoint, that is a valid complaint. But from an engineering perspective, choosing Wi-Fi was inevitable. We call this The Bandwidth Dilemma.
To understand why, we have to look at the data being generated. A standard PIR sensor outputs a simple binary signal: 1 (Motion Detected) or 0 (No Motion). This requires almost zero bandwidth and can easily run on a low-power Zigbee mesh network.

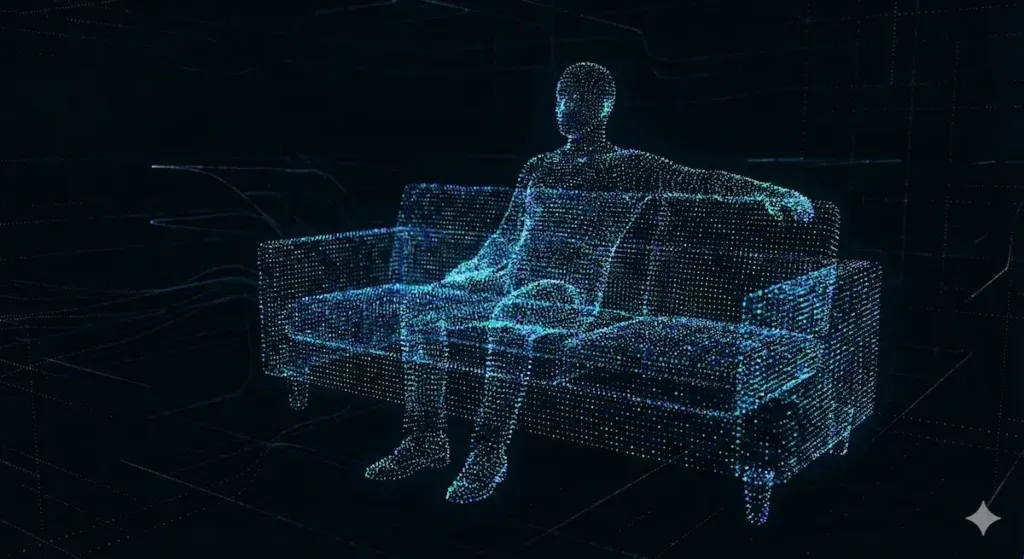

The FP2 is different. It uses a 60GHz Millimeter Wave (mmWave) Radar. It doesn’t just “see” motion; it constantly scans the room to generate a Point Cloud. This is a stream of raw data points containing distance, velocity, and angle information for every reflection in the room.
To process spatial positioning (X, Y coordinates) and track up to three targets simultaneously in real-time, the sensor generates a data stream that exceeds the capacity of standard low-power protocols.
-
Zigbee has a theoretical maximum throughput of roughly 250kbps, but in real-world mesh networks, it is much lower.
-
Wi-Fi (802.11 b/g/n) provides the necessary pipe to transmit this dense telemetry data to the local hub or cloud for processing.
Pushing real-time radar point clouds through a Zigbee network would be like trying to stream a 4K video over a dial-up connection. It would flood the mesh and cause significant latency.
The Bandwidth Dilemma: Processing this level of Point Cloud data in real-time is why Aqara chose Wi-Fi over Zigbee.
Thermal Design and Power Consumption
Another immediate difference you will notice is that the FP2 is wired. It requires a constant 5V 1A power source via USB-C.
High-frequency radar chips are power-hungry. Unlike a PIR sensor that “wakes up” only when triggered, the mmWave radar is essentially a radio station that is always broadcasting. It emits a continuous 60GHz signal and processes the echoes using a high-performance MCU.
This continuous operation generates heat. If you touch an FP2 that has been running for an hour, it will feel warm to the touch. This is perfectly normal for active radar hardware, but it makes battery operation physically impossible with current battery technology. A coin cell battery that lasts two years in a PIR sensor would be drained by the FP2 in a matter of hours.
This high power requirement is a stark contrast to devices like the [Aqara Climate Sensor W100], which I analyzed previously. While the W100 is engineered for extreme minimalism and battery longevity, the FP2 sacrifices power efficiency for raw processing speed.
How the Technology Works: Doppler vs. PIR
The magic of “True Presence” lies in the Doppler Effect.
Traditional PIR sensors look for a change in heat signature across a segmented lens. If you match the ambient temperature or stop moving, you become invisible to the sensor.
The FP2, however, is sensitive enough to detect micro-movements. Even when you are holding your breath, your heart is beating, and your body is making tiny, involuntary adjustments to maintain balance. More importantly, when you breathe, your chest expands and contracts by a few millimeters.
The 60GHz radar detects the phase shift in the reflected waves caused by this chest movement. In engineering terms, this gives the device a high Signal-to-Noise Ratio (SNR) for human detection versus static objects.
For a deeper technical dive into how [FMCW radar technology] works, Infineon provides excellent documentation.
The Role of MIMO Antennas
The FCC filing reveals the use of a MIMO (Multiple Input Multiple Output) antenna array.
-
A single antenna can tell you how far away an object is (Range).
-
A MIMO array allows the sensor to determine where the object is in 2D space (Azimuth/Angle).
By comparing the slight time differences of the signal arriving at different receiving antennas, the FP2 builds a coordinate map of your room. This is what enables the Zone Positioning feature, allowing you to trigger different automations depending on whether you are sitting on the sofa or working at your desk.
Comparison: Aqara FP2 vs. The Competition
To better understand where the FP2 fits in the market, let’s compare it with a standard PIR sensor and a generic Zigbee-based mmWave sensor (often found in Tuya devices).
| Feature | Standard PIR Sensor | Generic Tuya Zigbee mmWave | Aqara FP2 (Wi-Fi) |
|---|---|---|---|
| Detection Method | Infrared (Heat) | 24GHz Radar | 60GHz Radar |
| Sensitivity | Low (Major Motion) | Medium (Micro Motion) | High (Breathing/Heartbeat) |
| Positioning | None | Limited (Distance only) | Full (X, Y Coordinates) |
| Zones | 1 (Whole Room) | 1 (Whole Room) | up to 30 Zones |
| Latency | Low (<1s) | Medium (1-2s) | Low (<1s) |
| Power Source | Battery | USB 5V | USB 5V |
| Protocol | Zigbee/Thread | Zigbee | Wi-Fi |
| Heat Output | Negligible | Warm | Warm |
The key takeaway here is the frequency. The jump from 24GHz (common in cheaper sensors) to 60GHz (Aqara FP2) allows for much finer resolution and better distinction between multiple targets.
Solving the Ghosting Issue
Radar technology has one major weakness: Interference.
To a radar sensor, a spinning ceiling fan, a fluttering curtain, or a robot vacuum cleaner looks suspiciously like a human being. In the industry, we call these false positives “Ghosts.”
Aqara addresses this with a software feature called Interference Zones. This is effectively a user-friendly implementation of Digital Signal Processing (DSP) masking.
When you identify a fan in the app and mark it as an interference source, you are programming the MCU to ignore the specific Doppler signature and coordinate set of that object. However, this is not a magic bullet. It requires patience.
Engineering Tips for Installation
To get the most out of this sensor and minimize ghosts, you need to think about the physics of radio waves.
-
Avoid Metal Obstructions: Metal reflects radio waves almost perfectly. Placing the FP2 near a large metal fridge or inside a metal shelf will cause signal scattering (multipath interference), leading to erratic behavior.
-
Corner Mounting is Superior: Mounting the sensor in a corner gives it a clear line of sight to the entire room and matches the natural spread of the radar beam.
-
Tilt Angles Matter: If you mount it high (over 2 meters), you must tilt it downwards. If the radar beam shoots over your head, it will only detect you when you stand up, defeating the purpose of a presence sensor.
Troubleshooting Common Issues
Even with advanced tech, things can go wrong. Here are common issues and engineering-based solutions.
Problem: The sensor keeps detecting me when I leave the room.
-
Cause: This is often caused by “multipath reflection.” The radar signal might be bouncing off a mirror or window and detecting movement in the hallway or outside.
-
Fix: Adjust the sensitivity in the app. Lowering the sensitivity reduces the effective range and ignores weaker reflections. You can also create “Exit Zones” near the door to force a faster status update.
Problem: It does not detect me when I am sleeping.
-
Cause: When you sleep under a thick duvet, the micro-movements of your breathing are dampened.
-
Fix: Ensure the sensor has a direct line of sight to your upper body. You may need to increase the “Presence Sensitivity” setting specifically for the bed zone, although this increases the risk of false positives from curtains.
Problem: My robot vacuum triggers the lights.
-
Cause: The vacuum is a moving object with a radar cross-section similar to a small pet or a crawling human.
-
Fix: Since the vacuum moves across the entire floor, you cannot just mask one zone. The best solution is automation logic: “If Vacuum is Running, Ignore FP2 Sensor.”
Verdict
The Aqara FP2 is an impressive piece of engineering. It successfully miniaturizes technology that was previously reserved for industrial applications and security systems.
Pros:
-
Solves the “sitting still” problem perfectly.
-
Seamless integration with major platforms via Matter support.
-
Zone automation allows one sensor to do the job of three.
If you are looking for the perfect device to pair with this sensor via Matter, check out my analysis on the [Aqara Dimmer Switch H2]. The combination of precise presence detection and smart dimming creates the ultimate automated lighting experience.
Cons:
-
Requires a wired power connection.
-
Initial setup and “ghost killing” can be time-consuming.
-
Generates heat, which may affect longevity in hot climates.
Is it perfect? No. But it is the first consumer device that makes the smart home actually feel “smart” rather than just responsive. For the engineer or the enthusiast, the FP2 is a must-have upgrade. Just remember to treat it like the precision instrument it is—installation location and software tuning are half the battle.
